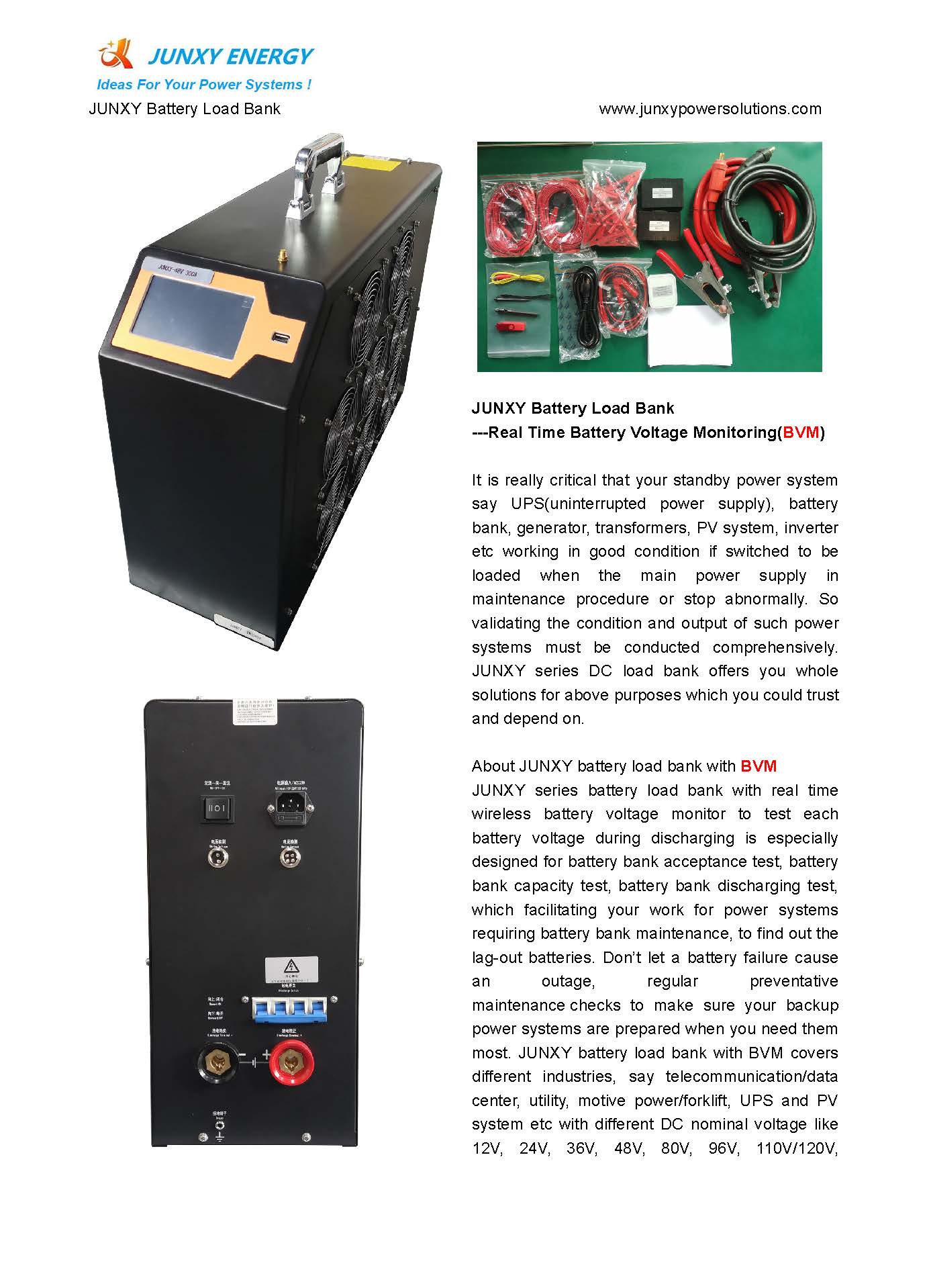

JUNXY series constant current DC load banks aredesigned for DC source loading test, especially for battery bank capacity/Ahcheck. The loading current is constant within the specified voltage range.Constant load current adjustable & controlled by MOSFET, use the PTCceramic resistors for load power consuming.
| Battery Load Bank Technical Specifications | ||||||
| Model | Ampere Range | Nominal Voltage | Constant Current Voltage Range | Working Voltage | Dimension(mm) | Weight |
| 48V 750A | 0-750A | DC48V | 48V: 38～60V Settable | AC220±15% | 756×600×625 | 80kg |
| Discharge Accuracy | Voltage: 0.5%
Current: 1% |
|||||
| BVM Nominal Voltage | 1.2V, 2V, 6V, 12V | |||||
| Protections | Over voltage protection, over current protection, reverse connection protection |
|||||
| BVM Working Voltage | 12～36Vdc | |||||
| BVM Test Range | 0～15Vdc | |||||
| Communication | Data Store: USB
Wireless Communication |
|||||
| Sampling Interval | 5s～1min | |||||
| Cooling | Force air horizontal cooling | |||||
| Working Environment | Temperature: 0℃～50℃ Humidity: 5%～90% | |||||

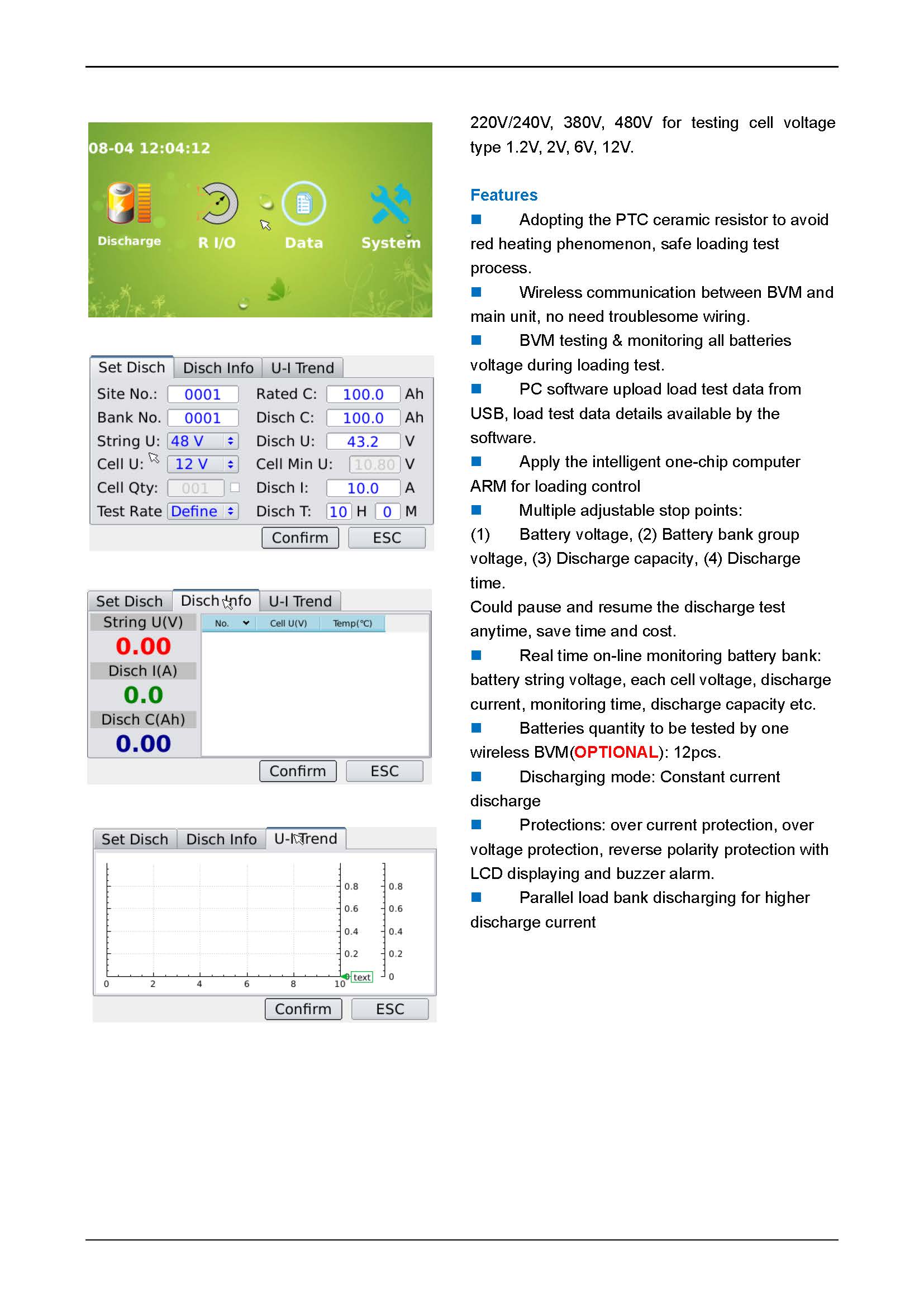

| Touch Screen | TFT 5inch colorful LCD | |||||
| Store Capability | 16M | |||||
