JUNXY 48V 150A Battery Load Bank | Portable & Light Weight | Battery Monitoring System

☰
×
JUNXY Battery Load Bank

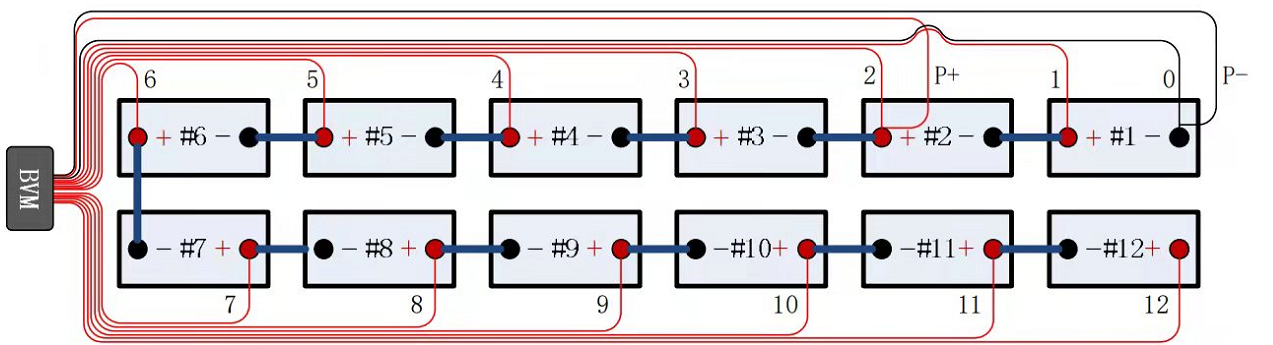

---Real Time Battery VoltageMonitoring (BVM)

BVM is used to test all batteriesvoltage during discharge (OPTIONAL)

JUNXY Series Constant Current DC Load Bank

JUNXY series constant current DC load banks are designedfor DC source loading test, especially for battery bank capacity/Ah check &maintenance. The loading current is constant within the specified voltagerange. Constant load current adjustable & controlled by MOSFET, use the PTCceramic resistors for load power consuming.

Features
  • Adopting the PTCceramic resistor to avoid red heating phenomenon, safe loading testprocess.
  • Wirelesscommunication between BVM and main unit, no need troublesome wiring (OPTIONAL).
  • BVM testing &monitoring all batteries voltage during loading test (OPTIONAL).
  • PC software uploadtest data from USB, all test details available by the software.
  • Apply the intelligentone-chip computer ARM for loading control
  • Multipleadjustable threshold to stop discharge automatically:
    1. Battery(Cell) voltage
    2. Battery bank string voltage
    3. Discharge capacity
    4. Discharge time.
    • Real time monitoring battery bank: battery string voltage, eachcell voltage, discharge current, monitoring time, discharge capacity etc.
    • Batteries quantity to be tested by one BVM (OPTIONAL): 12pcs.
    • Discharging mode: Constant current discharge
    • Protections: over current protection, over voltage protection,reverse polarity protection with LCD displaying and buzzer alarm.
    • Parallel load bank discharging for higher discharge current
Battery Load Bank Technical Specifications
Model Ampere Range Nominal Voltage Constant Current Voltage
Range		 Working Voltage Dimension

(mm)

 Weight
48V 150A 0～150A DC48V 38～60V Settable AC220±15%

DC48V

 410×197×273 9kg
Discharge Accuracy Voltage: 0.5%

Current: 1%
BVM Nominal Voltage 1.2V, 2V, 6V, 12V

BVM is optional
Protections Over voltage protection, over current
protection, reverse connection protection
BVM Working Voltage 12～36Vdc
BVM Test Range 0～15Vdc
Communication Data Store: USB

Wireless Communication
Sampling Interval 5s～1min
Cooling Force air horizontal cooling
Working Environment Temperature: 0℃～50℃  Humidity: 5%～90%
Touch Screen TFT 5inch colorful LCD
Store Capability 16M
