JUNXY-33-60KVA AC Power Source

☰
×

IGBT/PWM Principle

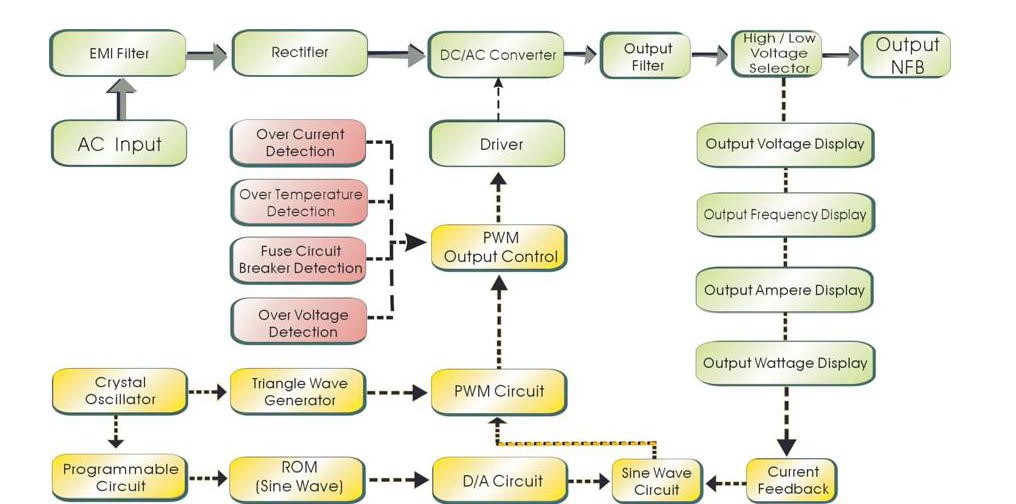

It is a machine that takes electrical input power at one frequency and voltage and provides variable output voltage and frequency for testing loads over their full voltage and frequency. Solid state units convert in-coming AC power into DC power, and then convert the DC into the required output power. Its design is based on advanced DSP and high frequency PWM(pulse width modulation) technology. By employing the IGBT module to reduce circuit complexity, and crystal oscillation to enhance frequency stability. Full galvanically isolated provides pure sine wave output and no harmonic distortion. Totally makes the unit with accurate regulations and no minimum distortion which are very suitable to be a standard AC power source for EMI/EMC/life and safety test.

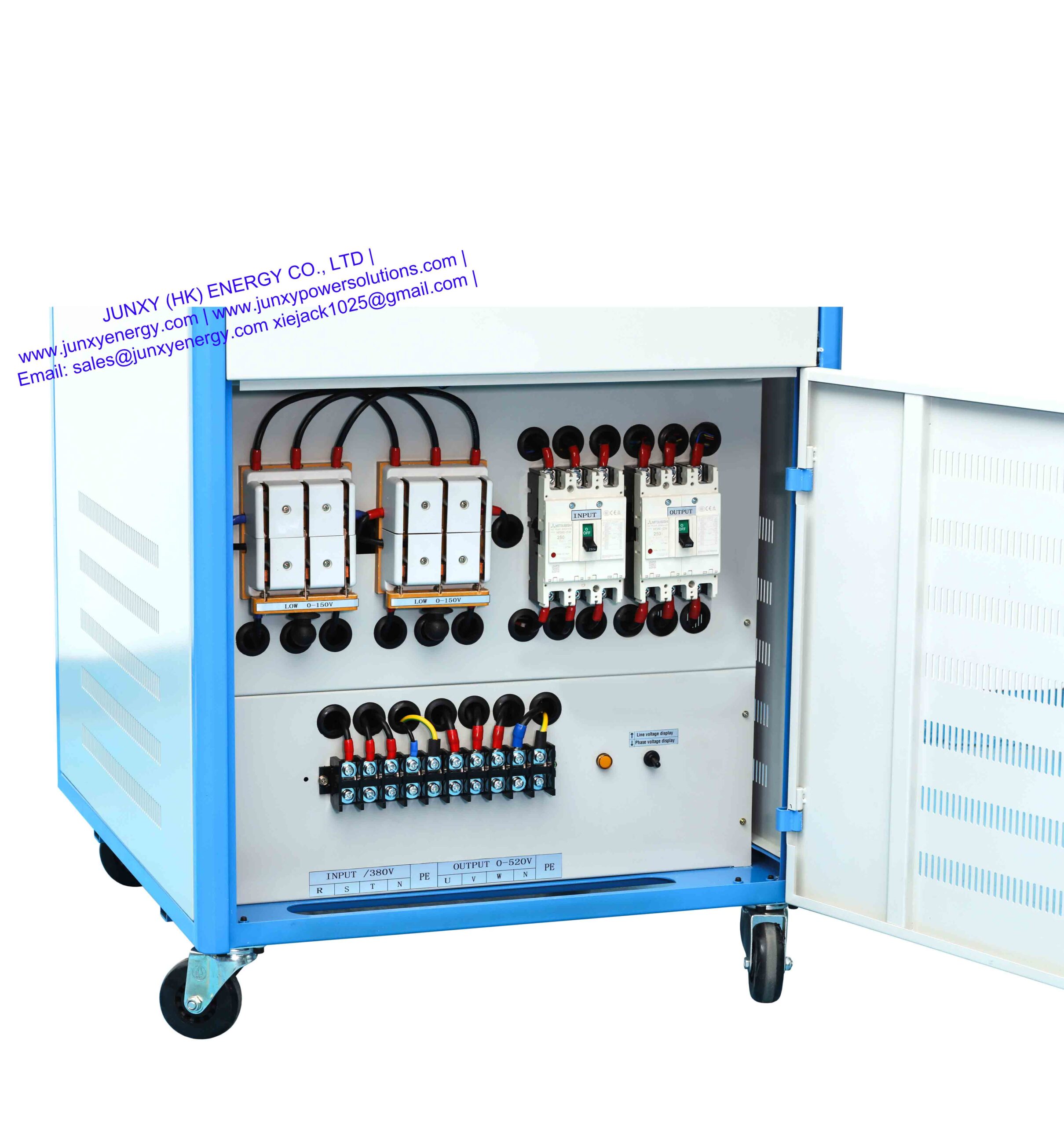

65KA-PS-scaled.jpg ac-power-source-1.jpg
General Product Features
  • This unit is suitable for use with resistive, capacitive, inductive and non-linear loads.
  • 50Hz, 60Hz input frequency.
  • 0 to 300VAC output voltage selector.
  • Programmable output frequency.
  • Precise 4 digital display output frequency, voltage, ampere & wattage.
  • Full galvanically isolated, no harmonic distortion(EMI, EMC).
  • Pure and stable sinewave output.
  • Fast response time.
  • IGBT/PWM technology enhances compact size, lower noise, high reliability.
  • Capable to simulate global voltage, frequency for export electrical products test.
  • Units are equipped with electronic circuit/instant trip breaker/buzzer alarm for over voltage, over current, over temperature, output short circuit protection.
Applications
  • Standard power source for EMI/EMC/Safety testing.
  • QA/QC/Life & safety testing.
  • Electric machinery product testing.
  • Excellent AC power source for R&D or lab.
  • Switching power supply testing.
  • AC Fan testing.
  • Compressor testing.
  • Motor testing.
  • Air conditioner testing.
  • Copier/OA equipment.
  • Computer/monitor/scanner.
  • Transformer/triac/SCR testing.
  • Electronic ballast testing.
Technical Specifications
Model JUNXY-3360 AC Power Source
Rated Power 60KVA
Working IGBT/PWM(pulse width modulation)
Input Voltage 3φ4W+G: AC415V±10%
Frequency 47Hz–63Hz
Output Voltage(3φ) Low Range:

0-150V(phase voltage), 0-260V(line voltage)
High range:

0-300V(phase voltage), 0-520V(line voltage)
Maximum Current L:166.63A(Low Range)
H:83.3A(High Range)
Load Regulation ≤±1%
Frequency 40.0Hz-120Hz(manual setting)
Frequency Resolution ≤±0.01%
Distortion(THD) Pure Sine Wave, ±2%


Metering

 Frequency Meter 4 LED digital display. Res
0.1Hz/step
Voltmeter 4 LED digital display. Res
0.1V
Ammeter 4 LED digital display. Res
0.1A
Wattmeter 4 LED digital display. Res
0.1W
Protections over load, over temperature,
instant cut off, short circuit and warning alarm setting
Working Environment Amb. Temp. 0-40℃
Humidity 0-90%(non-condensing)
Dimension & Weight 90*75*120cm
400kg
