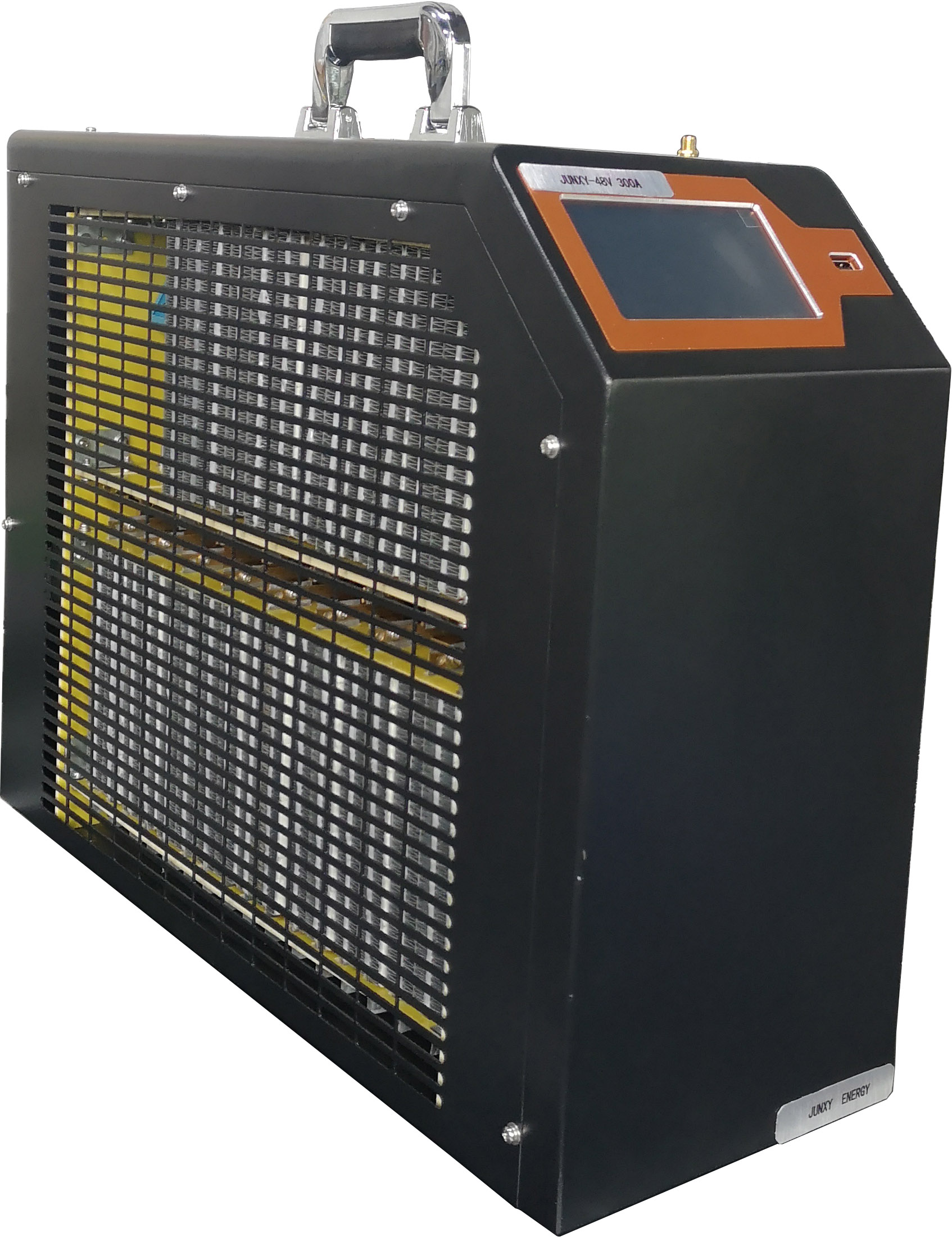

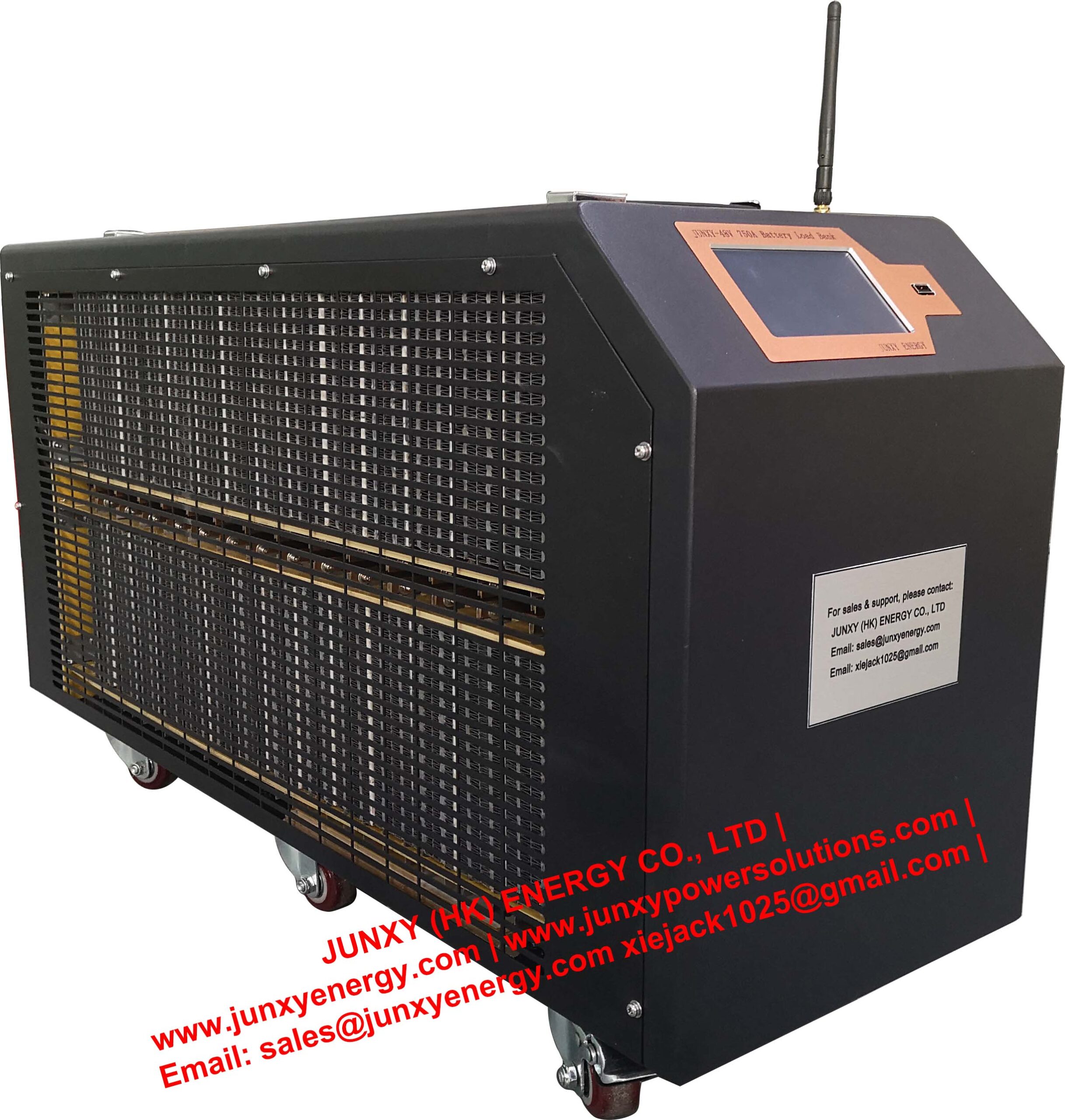

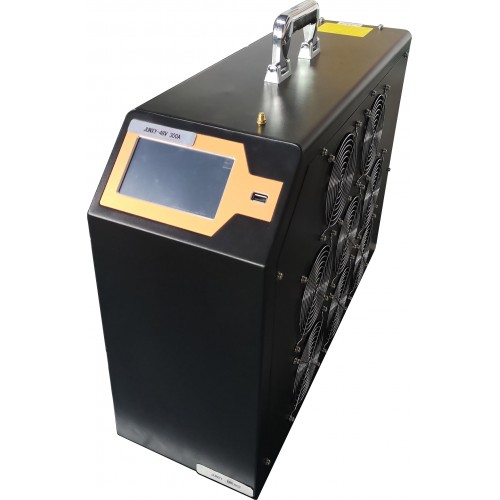

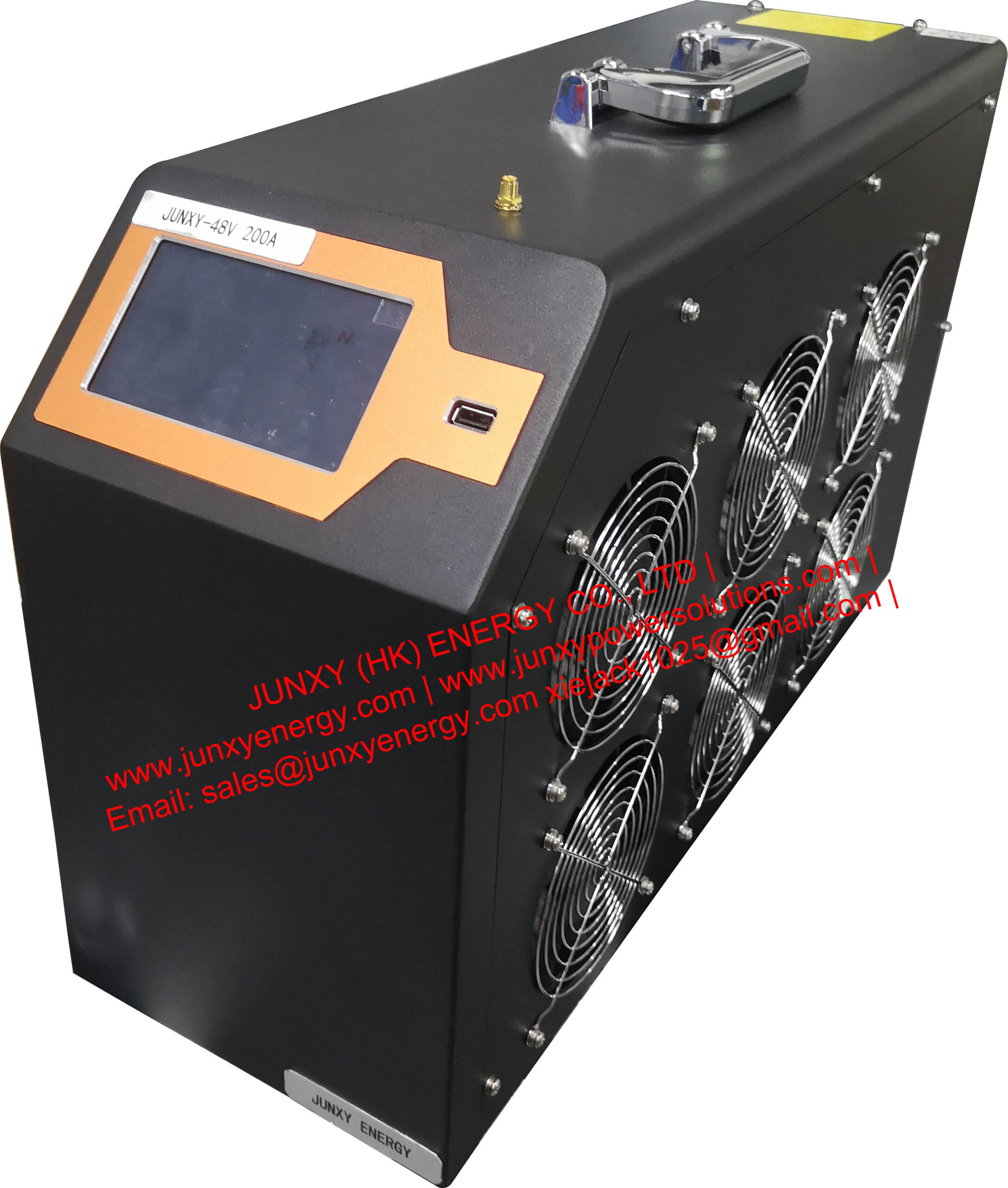

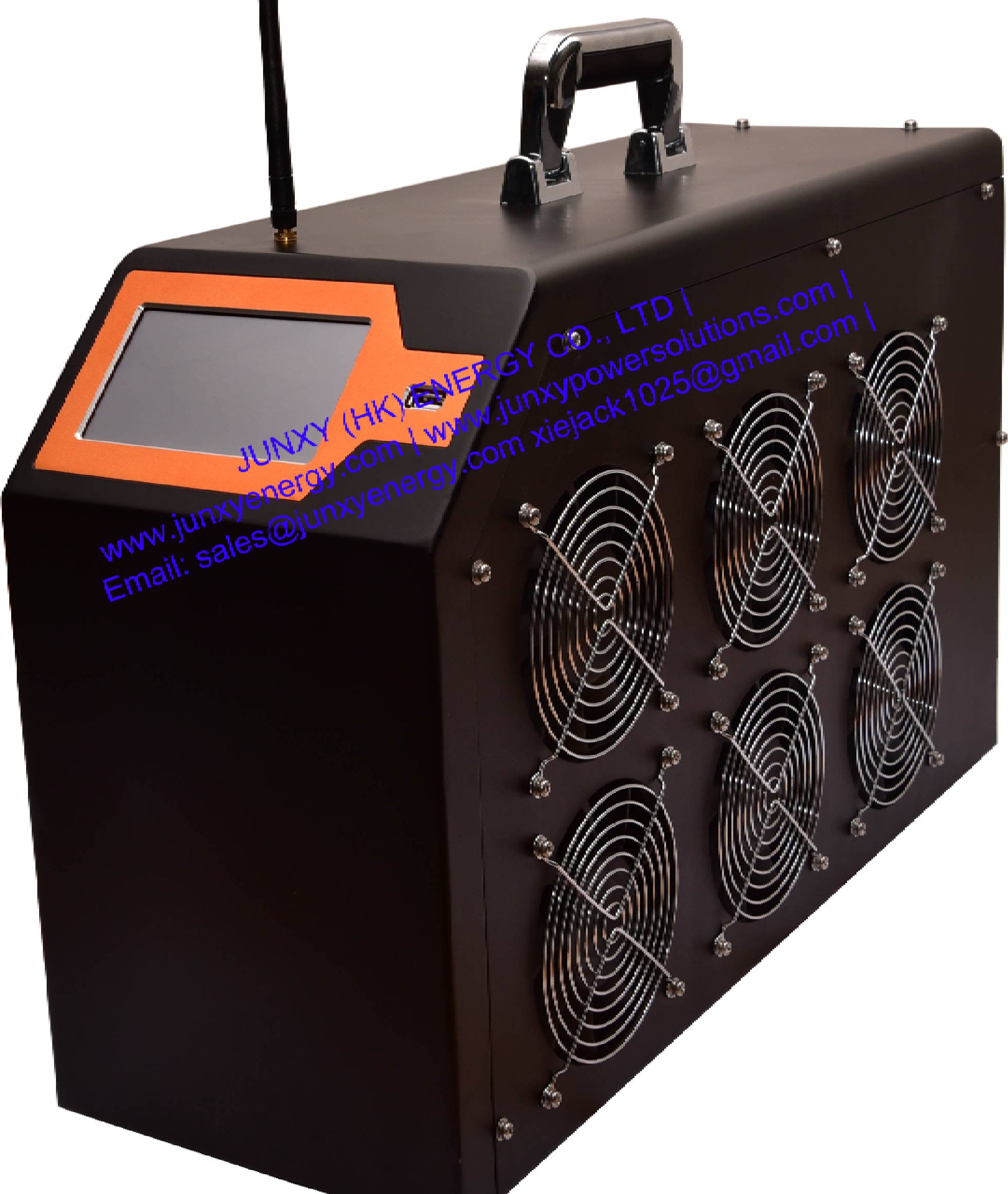

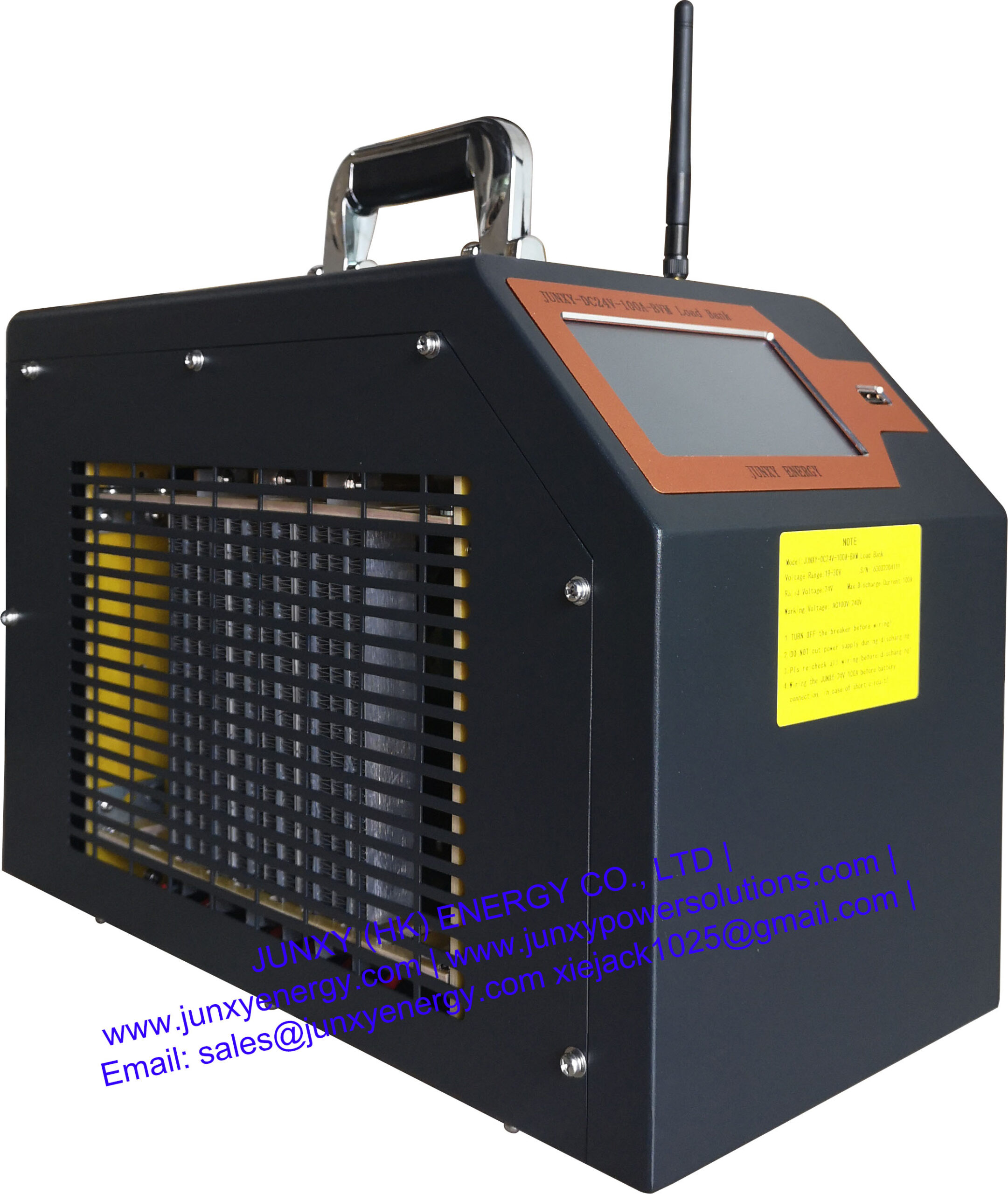

24V & 48V Telecom Battery Load Bank

JUNXY Series Constant Current DC Load Bank

JUNXY series constant current battery load bank & DC load banks are designed for DC source loading test, especially for battery bank capacity/Ah check & maintenance. The battery load bank discharger loading current is constant within the specified voltage range. Battery Load bank constant load current adjustable & controlled by MOSFET, use the PTC ceramic resistors for load power consuming.

Battery Load Bank Capacity Discharger BVM is used to test all batteries voltage during discharge (OPTIONAL)

Features

• Battery Load bank adopting the PTC ceramic resistor to avoid red heating phenomenon, safe loading test process.
• Wireless communication between BVM and battery load bank main unit, no need troublesome wiring for load bank discharge wiring process (OPTIONAL).
• BVM testing & monitoring all batteries voltage during battery load bank loading test (OPTIONAL).
• Battery Load Bank PC software upload test data from USB, all test details available by the software.
• Apply the intelligent one-chip computer ARM for battery load bank capacity discharger tester loading control
• Multiple adjustable threshold to stop battery load bank discharge process automatically:
1. Battery(Cell) voltage
2. Battery bank string voltage
3. Discharge capacity
4. Discharge time.
• Real time monitoring battery bank during battery load bank testing: battery string voltage, each cell voltage, discharge current, monitoring time, discharge capacity etc.
• One BVM could monitor up to 12pcs battery during battery bank capacity test(OPTIONAL): 12pcs.
• Battery Load Bank Discharging mode: Battery load bank constant current discharge the battery bank
• Battery load bank Protections: over current protection, over voltage protection, reverse polarity protection with LCD displaying and buzzer alarm for the battery load bank protection.
• 2 or more battery load bank Parallel load bank discharging for higher discharge current

PC software remote control the load bank & all battery bank load test setup by battery load bank PC software

The 24V & 48V series battery load bank expecially design for telecom battery bank load test application, portable & light weight battery load bank

Pls click HERE to download JUNXY ENERGY load bank catalogue for more details, OR could email SALES@JUNXYENERGY.COM for more consultance.
